Example Pointed Line

From OCAD Wiki - English
Jump to navigation Jump to search


To create this line symbol, enter the following parameters to a newly created line symbol:

Main Line

  • Line color: black
  • Line width: 0.5 mm
  • Line length
    • Distance from start: 1.0 mm
    • Distance to the end: 1.0 mm
    • Pointed ends: activated

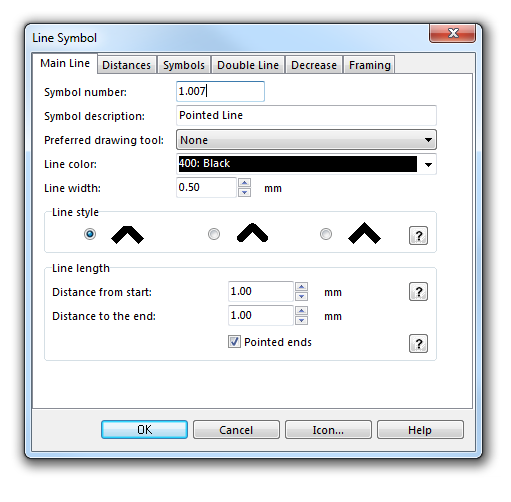

PointedLine MainLine.PNG

Download link: Example_PointedLine.ocd

Back to the Create a New Line Symbol page.
